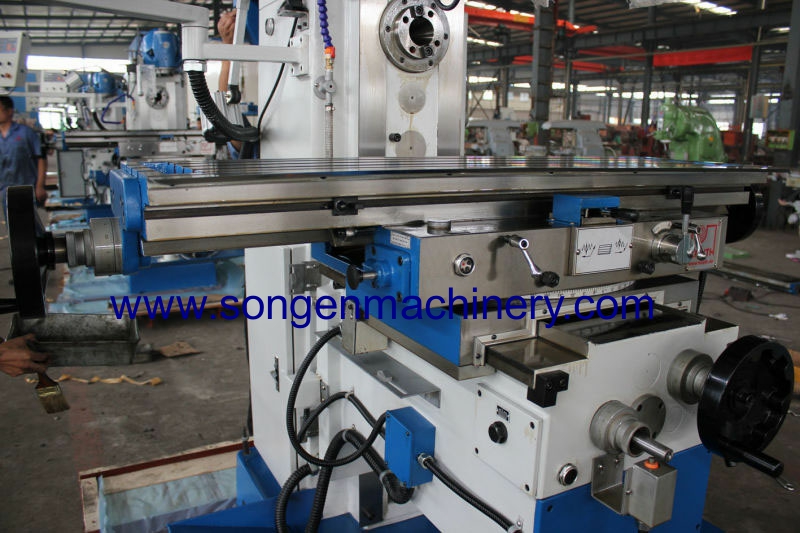

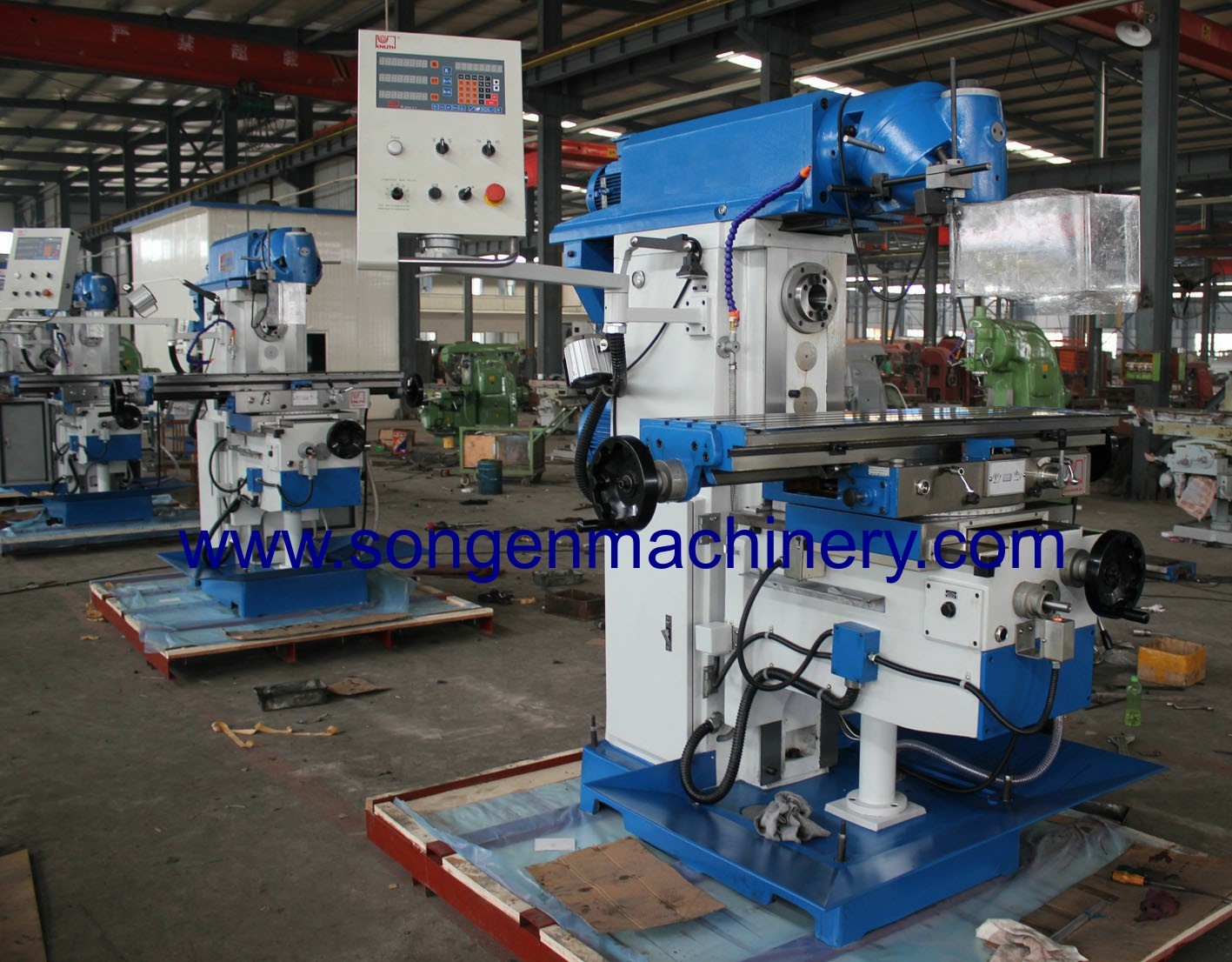

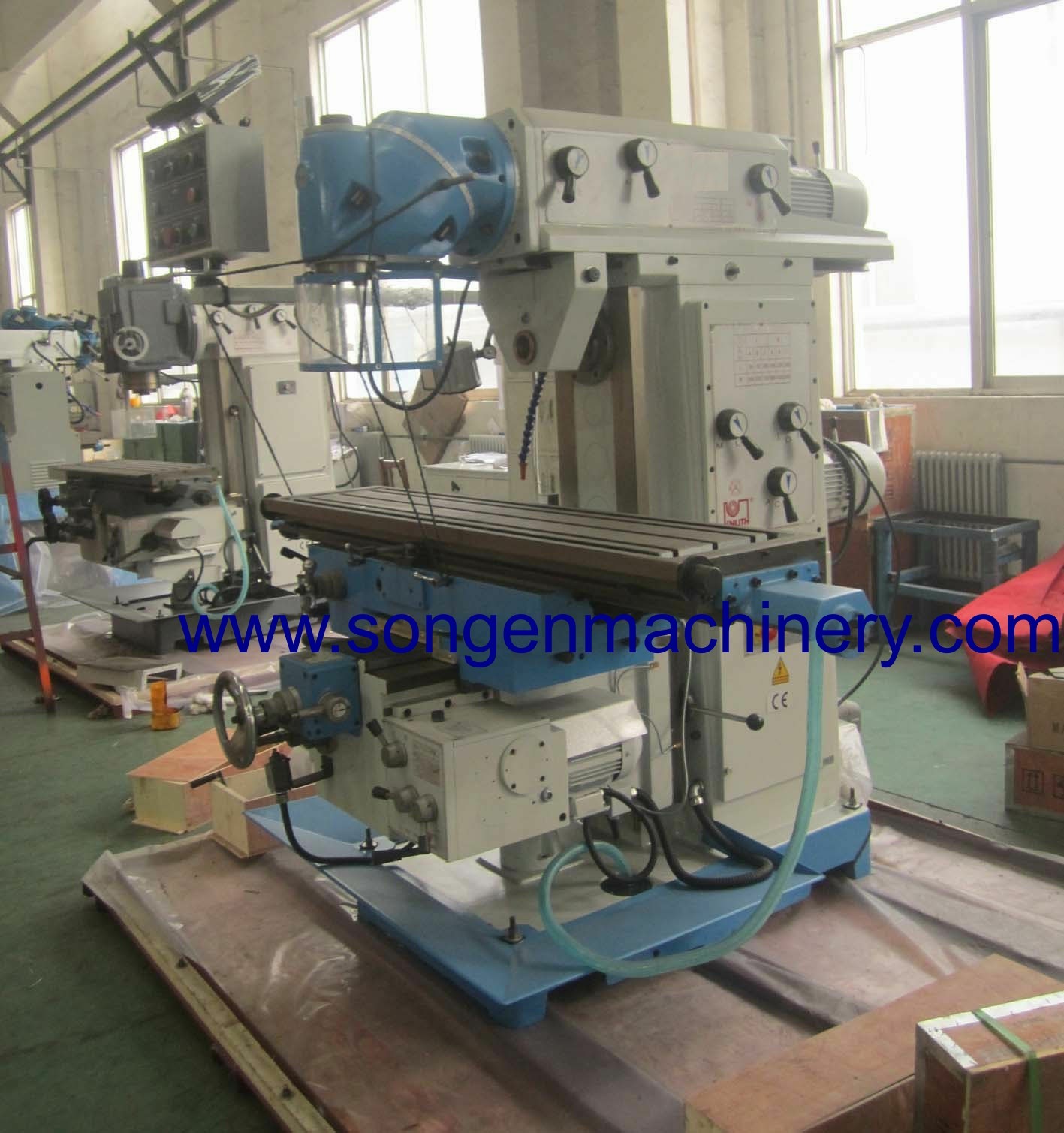

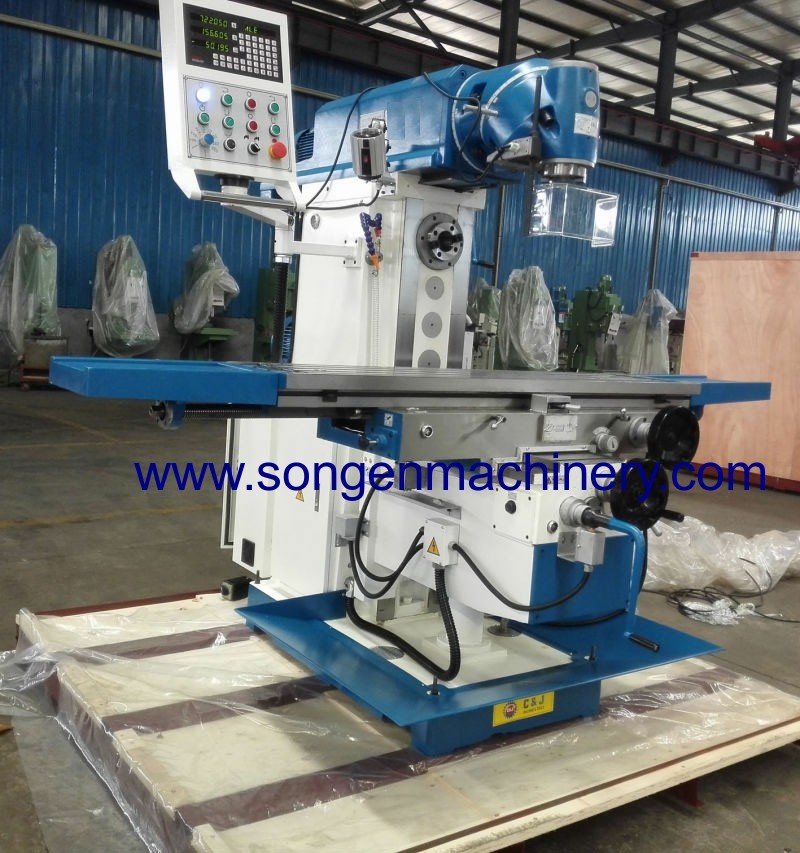

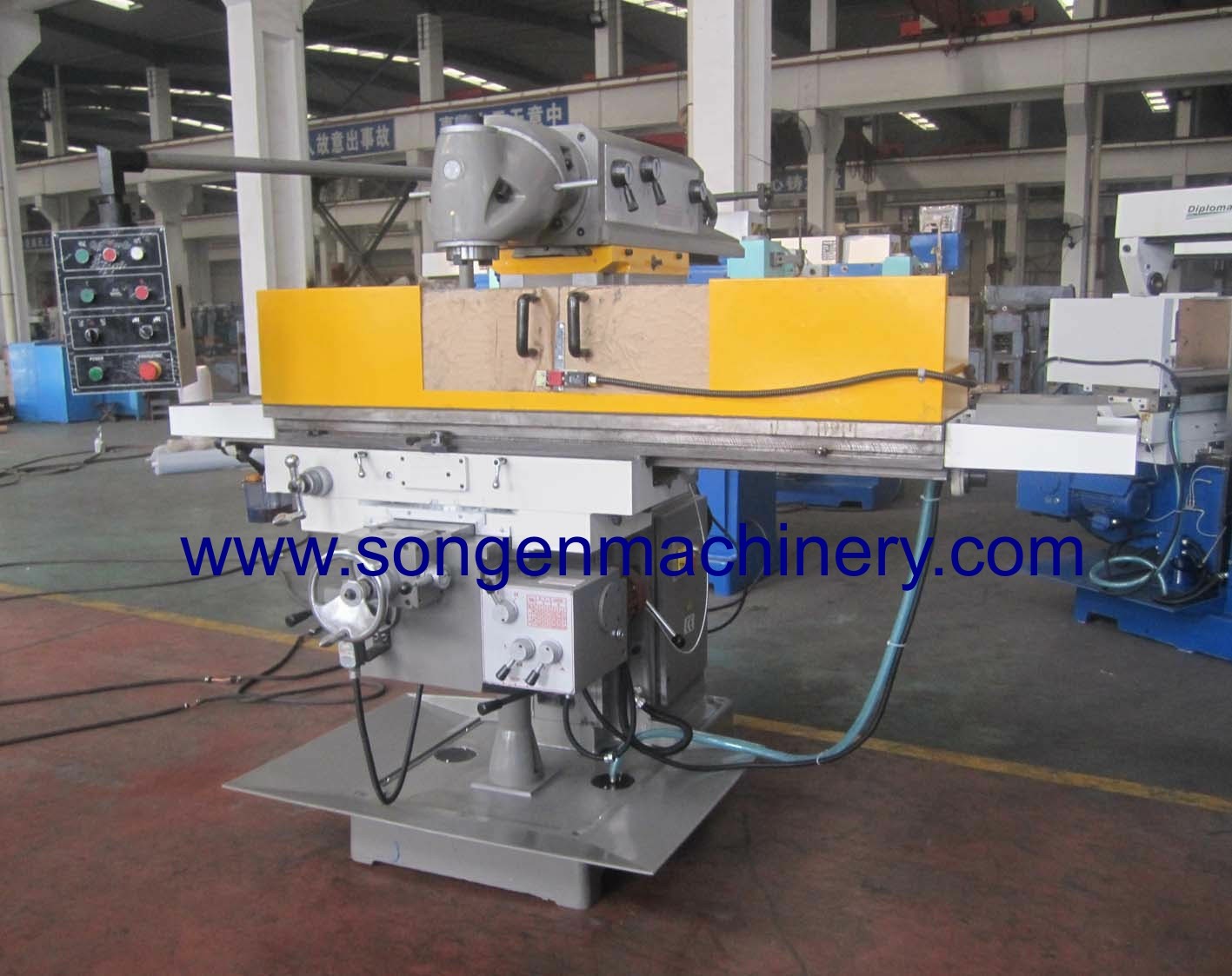

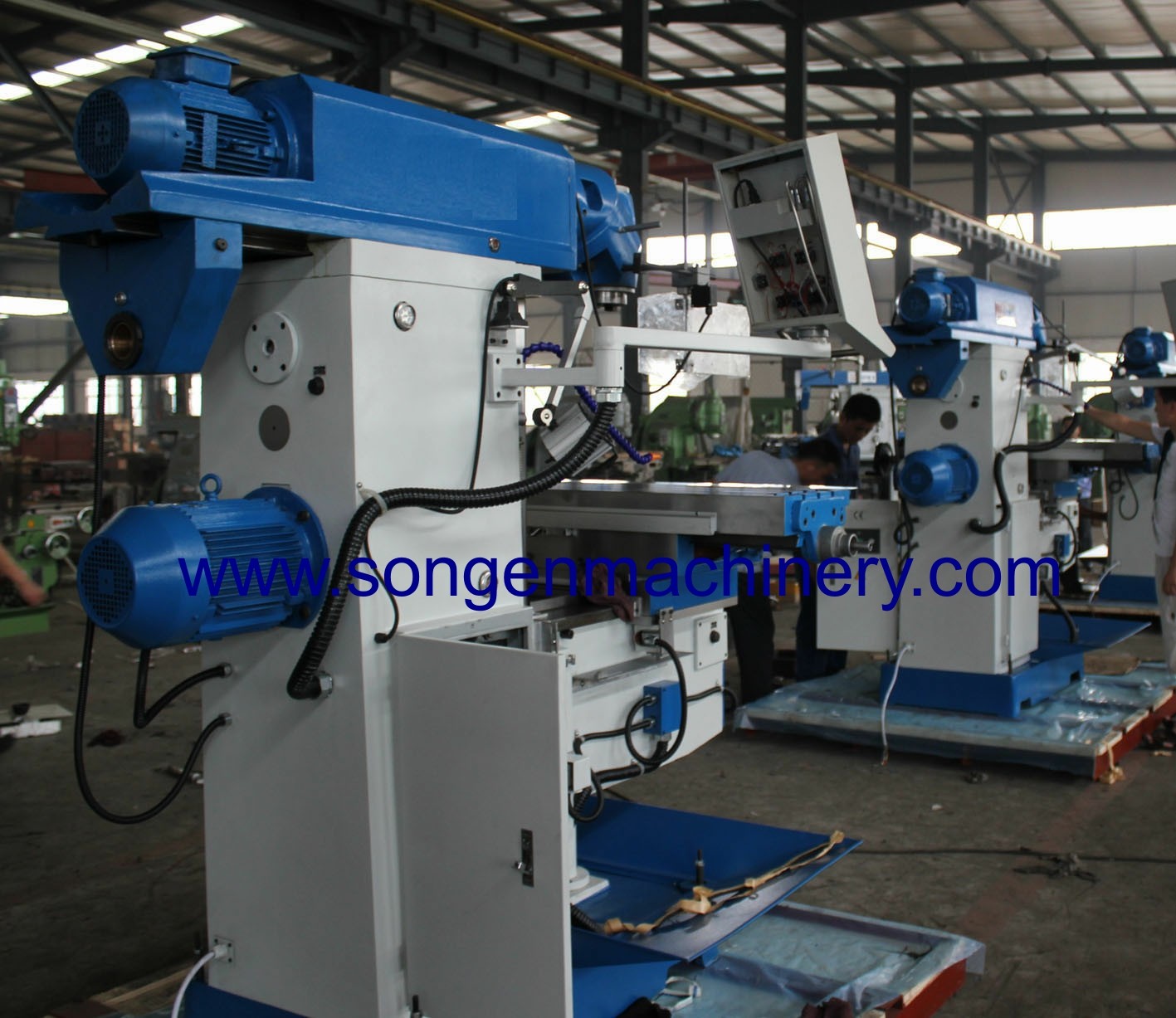

USHM360X1600 Universal swivel head horizontal milling machine, table 360x1600mm
Extremely rigid machine bed made of high-strength and high-density cast-iron with heavy ribbing;
Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance;
Large work area of 1600 x 360 mm and up to 500 kg table load capacity;
Quiet, precision-made headstock gears with hardened and ground gears;
Universal cutter head swivels on 2 levels - quick change-over from horizontal to vertical machining;
By combining both swivel levels, almost any spatial angle can be set;
Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes;
Telescoping covers on the Y axis protect the feed spindle;
Control panel swings out to either side and features an integrated position indicator;
5.5 kW main drive guarantees high torque;
Coolant system and chip tray are Included.
Specifications | Unit | Model: USHM360x1600 |
Table dimensions | mm | 1600x360 |
Working scope, X/Y/Z | mm | 1300/300/450 |
Table swivel angle | Degrees | ±45 |
Table load capacity (max.) | Kg | 500 |
T-slots (qty x width x spacing) | mm | 3x18x80 |
Spindle speed, 12 stepa | rpm | 60-1750 for vertical milling 60-1800 for horizontal milling |
Ram travel | mm | 550 |
Distance from horizontal spindle to table | mm | 20-410 |
Spindle nose-to-table distance | mm | 175-565 |
AC servo motor torque (X/Y/Z) | N.m | 10 |
Distance between spindle axis and ram surface | mm | 200 |
Spindle taper | 7:24, IS0 50 | |
Axis rapid feed (X/Y/Z) | mm | 1200/800/600 |
Axis feed (X/Y/Z) | mm | 30-750 / 20-500 / 15-375 |
Motor capacity, vertical/horizontal | KW | 4kw/5.5kw |
Feed motor rating (X/Y/Z) | N.m | 10, servo-motor |
Dimensions | m | 2.45x2.1x2.15 |
Weight | kg | 2750 |
Parts/components/files supplied with this machine: Optional accessories:
Item | Specifications | Qty. | Item | Specifications | Qty. | |
7:24 middle cover | 7:24 ISO50/MS4 | 1 | 3-Axis DRO system | 1 | ||
Horizontal arbor assembly | Ф27 | 1 | DRO cantilever | Aluminum alloy made | 1 | |
Horizontal arbor assembly | Ф32 | 1 | Spindle guard | 1 | ||
Drawbar | M24 | 2 | Rotary table | D 320mm | 1 | |
Double-ended wrench | S22-24 | 1 | Machine vise | 160mm opening | 1 | |
Double-ended wrench | S17-19 | 1 | ||||
Double-ended wrench | S36-41 | 1 | ||||
Inner hexagonal wrench | 5 | 1 | ||||
Inner hexagonal wrench | 10 | 1 | ||||
Inner hexagonal wrench | 14 | 1 | ||||
Machine vice | 160mm opening | 1 | ||||
sleeve | M24 | 1 | ||||
Washer | M24 | 1 | ||||
ISO 50 sets milling chuck | 7:24, ISO 50, 4\5\6\8\10\12\14\16 | 1 | ||||
Taper shank sets milling cutter arbor | 7:24 ISO 50-Ф32 | |||||
Operation manual | 1 | |||||
The packing list | 1 | |||||
certification | 1 | |||||
EP1C series servo drive manual | 1 |
